Belden 1633E Cat 5e FTP PVC Cable

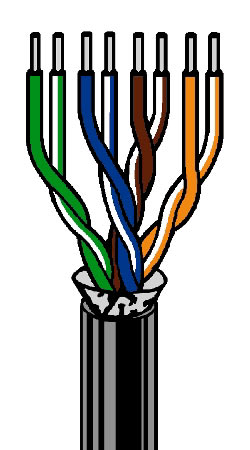

Belden 1633E Cat 5e cable

The Belden 1633E data cable is used for horizontal and building backbone cable. It supports the current Category 5 and Category 5 Enhanced applications including 10 Base-T, 100 Base-T, 1000 Base-T (Gigabit Ethernet), FDDI and ATM.

Cable Construction

Standards: ISO/IEC 11801, EN 50173
Future Standards: ISO/IEC 11801 2nd Edition,
EN 50173 2nd Edition
pr EN 50288-3-1
Cable Construction: Shielded 4 twisted pairs
Conductor: Solid Bare Copper
Conductor Diameter: AWG 24 (0.52mm)
Conductor Insulation: Polyethylene (PE)
Diameter over Insulation: 1.10 mm ± 0.05mm
Drain Wire: AWG 26 tinned copper
Shield: Aluminium / polyester foil
Jacket Material: PVC (Flame retardant)
Outer Diameter: 6.0mm ± 0.3mm
Cable Colour Code: 1: White - Blue / Blue

2: White - Orange / Orange

3: White - Green / Green

4: White - Brown / Brown

Mechanical Properties

Operation Temperature Range: -20°C to +60°C
Installation Temperature Range: +0°C to +50°C
Operation Min Bending Radius: 24mm
Installation Min Bending Radius: 48mm
Maximum Pulling Tension 80 N
Flame Retardancy: IEC 332-1
Energy of Flame: 515 kJ/m
Approx Weight: 43 kg/km
Maximum Operating Voltage: 48 V rms
Maximum Continuous current per conductor (25°C) 1.4A

Electrical Properties (at 20°C)

Nominal Mutual Capacitance at 1kHz: 50 nF/km
Maximum Conductor DCR: 93.5 Ohm/km
Nominal Velocity of Propagation: 0.70 c
SKEW - Propagation delay difference (100 MHz): typical ≤ 15 ns / 100m
Impedance 1-100MHz: 100 ± 15 Ohm

Attenuation

Frequency 1 4 10 16 20 31.25 62.5 100 MHz
Maximum* 4.0 4.0 6.3 8.0 9.0 11.4 16.5 21.3 dB/100m
Typical 2.0 3.8 6.0 7.6 8.5 10.8 15.0 19.2 dB/100m

NEXT

Frequency 1 4 10 16 20 31.25 62.5 100 MHz
Maximum* 60.0 56.3 50.3 47.2 45.8 42.9 38.4 35.3 dB
Typical 70 62 57 54 52 49 45 43 dB

Power Sum NEXT

Frequency 1 4 10 16 20 31.25 62.5 100 MHz
Minimum* 57.0 53.3 47.3 44.2 42.8 39.9 35.4 32.3 dB
Typical 68 60 55 52 50 47 43 41 dB

Power Sum ELFEXT

Frequency 1 4 10 16 20 31.25 62.5 100 MHz
Minimum* 60.8 48.8 40.8 36.7 34.8 30.9 24.9 20.8 dB
Typical 73 61 53 47 45 41 37 33 dB

ACR

Frequency 1 4 10 16 20 31.25 62.5 100 MHz
Minimum* 60.8 48.8 40.8 36.7 34.8 30.9 24.9 20.8 dB
Typical 73 61 53 47 45 41 37 33 dB

Power Sum ACR

Frequency 1 4 10 16 20 31.25 62.5 100 MHz
Minimum* 53.0 49.3 41.0 36.2 33.8 28.5 18.8 11.0 dB/100m
Typical 66.0 56.2 49.0 44.4 41.5 36.2 28.0 21.8 dB/100m

*Values according to cable requirements of ISO / IEC 11801 Category 5 enhanced

Cable Ordering

Cable Marking : BELDEN 1633E FTP CAT5E 4PR AWG24 ISO/IEC 11801 EN 50173 VERIFIED 100 OHM

Meter Marking : Yes

Cable Jacket Colour : Grey / RAL 7032 / Belden 3251

Product Number Length Weight Notes
43132 3251 240 500m 21kg Non returnable reel
43132 3251 241 1000m 42kg Non returnable reel
