Belden Industrial Data ® DataBus IEC 61185-2 (ISA / SP-50) Fieldbus or Profibus PA Cables

Fieldbus is a standardised digital communications protocol that enables a simple pair of wires to power and carry the communication signals between field devices and a control room. Profibus is on of the largest open industrial fieldbus networks in the world.

Belden 3076F

  • Fieldbus / Profibus PA
  • 18 AWG stranded (7 x 26) Tinned copper
  • Beldfoil ® (100% shield coverage)
  • Tinned copper drain wire
  • Polyolefin Insulation
  • Orange or blue PVC jacket
  • Type A 300V 75oC (31.25 KBits / sec)
  • Conductor (stranding) Diameter Nom. DCR - 18 AWG (7 x 26) 0.48", Tinned copper 7.3 Ω/M', 24.0 Ω/km
  • Nominal OD - 0.253 inch / 6.43mm
Standard Length (ft) 250 500 1000 2500 5000
Standard Length (m) 76.2 152.4 304.8 762.0 1524.0
Standard unit weight (lbs) 10.5 18.5 34.0 85.0 170.0
Standard unit weight (kgs) 4.8 8.4 15.5 38.6 77.3

Belden 3076ENH

  • Fieldbus / Profibus PA
  • 18 AWG stranded (7 x 26) Tinned copper
  • Beldfoil ® (100% shield coverage)
  • Tinned copper drain wire
  • Polyolefin Insulation
  • Orange or blue low smoke, zero halogen jacket
  • Type A 300V 80oC
  • Conductor (stranding) Diameter Nom. DCR - 18 AWG (7 x 26) 0.48", Tinned copper 6.3 Ω/M', 20.5 Ω/km
  • Nominal OD - 0.295 inch / 7.50mm
Standard Length (ft) 1640 3280
Standard Length (m) 500 1000
Standard unit weight (lbs) 98.2 44.6
Standard unit weight (kgs) 191.0 86.7

Belden 3076ELS

  • Fieldbus / Profibus PA
  • 18 AWG stranded (7 x 26) Tinned copper
  • Beldfoil ® (100% shield coverage)
  • Tinned copper drain wire
  • Polyolefin Insulation
  • Black or blue low smoke, zero halogen jacket, steel wire armour
  • Type A 300V 80oC
  • Conductor (stranding) Diameter Nom. DCR - 18 AWG (7 x 26) 0.48", Tinned copper 6.3 Ω/M', 20.5 Ω/km
  • Nominal OD - Under armour - 0.295 inch / 7.50mm, Over armour - 0.512", 13.00mm
Standard Length (ft) 1640 3280
Standard Length (m) 500 1000
Standard unit weight (lbs) 394.5 179.1
Standard unit weight (kgs) 736.3 334.3

Belden 3077F

  • Fieldbus
  • 22 AWG stranded (7 x 30) Tinned copper
  • Beldfoil ® (100% shield coverage)
  • Tinned copper drain wire
  • Polyolefin Insulation
  • Orange PVC jacket
  • Type B 300V 75oC (31.25 KBits / sec)
  • Conductor (stranding) Diameter Nom. DCR - 22 AWG (7 x 30) 0.030", Tinned copper 17.1 Ω/M', 56.0 Ω/km
  • Nominal OD - 0.295 inch / 7.50mm
Standard Length (ft) 500 1000
Standard Length (m) 152.4 304.8
Standard unit weight (lbs) 11.0 5.0
Standard unit weight (kgs) 23.0 10.5

Belden 3077ENH

  • Fieldbus
  • 22 AWG stranded (7 x 30) Tinned copper
  • Beldfoil ® (100% shield coverage)
  • Tinned copper drain wire
  • Polyolefin Insulation
  • Orange or blue low smoke zero halogen jacket
  • Type B 300V 75oC
  • Conductor (stranding) Diameter Nom. DCR - 22 AWG (7 x 30) 0.030", Tinned copper 16.0 Ω/M', 52.5 Ω/km
  • Nominal OD - 0.295 inch / 7.50mm
Standard Length (ft) 1640 3280
Standard Length (m) 500 1000
Standard unit weight (lbs) 86.8 168.1
Standard unit weight (kgs) 39.4 76.3

Belden 3077ELS

  • Fieldbus
  • 22 AWG stranded (7 x 30) Tinned copper
  • Beldfoil ® (100% shield coverage)
  • Tinned copper drain wire
  • Polyolefin Insulation
  • Black or blue low smoke zero halogen jacket, steel wire armour
  • Type B 300V 75oC
  • Conductor (stranding) Diameter Nom. DCR - 22 AWG (7 x 30) 0.030", Tinned copper 16.0 Ω/M', Ω/km
  • Nominal OD - Under armour - 0.295 inch / 7.50mm, Over armour - 0.512", 13.00mm
Standard Length (ft) 1640 3280
Standard Length (m) 500 1000
Standard unit weight (lbs) 381.5 741.2
Standard unit weight (kgs) 173.2 336.5

Belden 3078F

  • Fieldbus
  • 22 AWG stranded (7 x 30) Tinned copper
  • Beldfoil ® (100% shield coverage)
  • Tinned copper drain wire
  • Cellular Polyolefin Insulation
  • Orange PVC jacket
  • High speed 300V 75oC (1.0 & 2.5MBits / sec)
  • Conductor (stranding) Diameter - 22 AWG (7 x 30) 0.030", Tinned copper 17.1 Ω/M', 56.0 Ω/km
  • Nominal OD - 0.351 inch / 8.92mm
Standard Length (ft) 250 500 1000 2500
Standard Length (m) 76.2 152.4 304.8 762.0
Standard unit weight (lbs) 12.0 23.0 44.0 115.0
Standard unit weight (kgs) 5.5 10.5 20.0 52.3

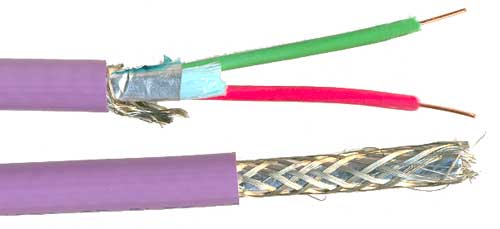

Belden Cable 3079A Profibus

Belden 3079A

  • Profibus DP EN50170-2-2
  • 22 AWG solid bare copper
  • Beldfoil ® +65% tinned copper braid shield (100% coverage)
  • Cellular Polyolefin Insulation
  • Chrome of violet PVC jacket
  • 300V 75oC
  • Conductor (stranding) Diameter - 22 AWG (solid) 0.026", bare copper 16.0 Ω/M', 52.5Ω/km
  • Nominal OD - 0.315 inch / 8.00mm
Standard Length (ft) 1000 2000 3600
Standard Length (m) 304.8 609.6 1097.6
Standard unit weight (lbs) 46.0 94.0 169.2
Standard unit weight (kgs) 20.9 42.7 76.9

Belden 3079ANH

  • Profibus DP EN50170-2-2
  • 22 AWG solid bare copper
  • Beldfoil ® +65% tinned copper braid shield (100% coverage)
  • Cellular Polyolefin Insulation
  • Purple low smoke, zero halogen jacket
  • 300V 80oC
  • Conductor (stranding) Diameter - 22 AWG (solid) 0.026", bare copper 15.9 Ω/M', 52.2 Ω/km
  • Nominal OD - 0.315 inch / 8.00mm
Standard Length (ft) 1000 1640 3280
Standard Length (m) 305 500 1000
Standard unit weight (lbs) 213.9 357.9 710.6
Standard unit weight (kgs) 97.1 162.5 322.6

Belden 3079ALS

  • Profibus DP EN50170-2-2
  • 22 AWG solid bare copper
  • Beldfoil ® +65% tinned copper braid shield (100% coverage)
  • Cellular Polyolefin Insulation
  • Black PVC jacket, steel wire armour
  • 300V 80oC
  • Conductor (stranding) Diameter - 22 AWG (solid) 0.026", bare copper 15.9 Ω/M', 52.2 Ω/km
  • Nominal OD - 0.315 inch / 8.00mm
Standard Length (ft) 1640 3280
Standard Length (m) 500 1000
Standard unit weight (lbs) 102.4 182.8
Standard unit weight (kgs) 46.5 83.0

Belden 3079E

  • Profibus DP EN50170-2-2
  • 22 AWG solid bare copper
  • Beldfoil ® +65% tinned copper braid shield (100% coverage)
  • Cellular Polyolefin Insulation
  • Purple PVC jacket
  • 300V 80oC
  • Conductor (stranding) Diameter - 22 AWG (7 x 30) 0.026", bare copper 15.9 Ω/M', 52.2 Ω/km
  • Nominal OD - 0.315 inch / 8.00mm
Standard Length (ft) 1000 1640 3280
Standard Length (m) 305 500 1000
Standard unit weight (lbs) 44.0 75.0 145.0
Standard unit weight (kgs) 20.0 34.1 65.9
