Belden Industrial Twin Cables

 Belden Blue Hose Industrial Twinax Cable

Belden industrial data solutions - industrial Ethernet coaxial cables - blue hose cables. CSE supplies a range of the Belden coaxial cables.

  • 78 Ohm, 20AWG
  • Stranded (7 x 28) .38"
  • Tinned Copper
  • Beldfoil® + 55% Tinned copper braid shield (100% shield coverage)

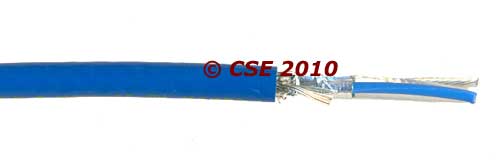

Belden 9463

  • Polyethylene Insulation
  • Blue sunlight resistant PVC jacket

Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) .038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km

Nominal OD .238", 6.05mm

Standard Length (ft) 100 U-500 500 U-1000 1000 6000 10000
Standard Length (m) 30.5 U-152.4 152.4 U-304.8 304.8 1828.7 3048
Standard unit weight (lbs) 4.6 18.5 18.5 37.0 37.0 222.0 370.0
Standard unit weight (kgs) 2.1 8.4 8.4 16.8 16.8 100.9 168.2

Belden 9463LS

  • Polyethylene Insulation
  • Blue low smoke
  • Zero halogen jacket
  • Steel wired armour

Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) .038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km

Nominal OD - 0.250inch / 6.35mm under armour, 0.423inch / 10.75mm over armour

Standard Length (ft) 1640 3280 4920
Standard Length (m) 500 1000 1500
Standard unit weight (lbs) 248.9 537.4 925.1
Standard unit weight (kgs) 113.0 244.0 420.0

Belden 9463NH

  • Polyethylene Insulation
  • Blue low smoke
  • Zero halogen jacket

Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) .038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km

Nominal OD - 0.250inch / 6.35mm

Standard Length (ft) 1000 1640 3280
Standard Length (m) 305 500 1000
Standard unit weight (lbs) 37.4 64.5 117.4
Standard unit weight (kgs) 17.0 29.3 53.3

Belden 9463F

  • 78 Ohm
  • 20AWG stranded (42 x 36) 0.038" Tinned copper
  • Overall Beldfoil + 85% Tinned copper braid shield (100% coverage)
  • Polyethylene Insulation
  • Blue sunlight resistant PVC jacket
  • High flex blue hose UL AWM Style 2464 (300V 60oC)

Conductor (stranding) diameter Nom. DCR - 20 AWG (42 x 36) 0.038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km

Nominal OD - 0.243inch / 6.17mm

Standard Length (ft) 1000 5000
Standard Length (m) 304.8 1524.0
Standard unit weight (lbs) 42.0 205.0
Standard unit weight (kgs) 19.1 93.2

Belden 9463DB

  • 78 Ohm, 20 AWG stranded (7 x 28) 0.038" tinned copper
  • Beldfoil + 55% tinned copper braid shield (100% shield coverage)
  • Polyethylene insulation
  • Blue sunlight resistant LDPE Jacket
  • Flooded direct burial blue hose 300V 80oC
  • Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) 0.038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km
  • Nominal OD - 0.240 inch / 6.10mm
Standard Length (ft) 1000 5000
Standard Length (m) 304.8 1524.0
Standard unit weight (lbs) 33.0 155.0
Standard unit weight (kgs) 15.0 70.5

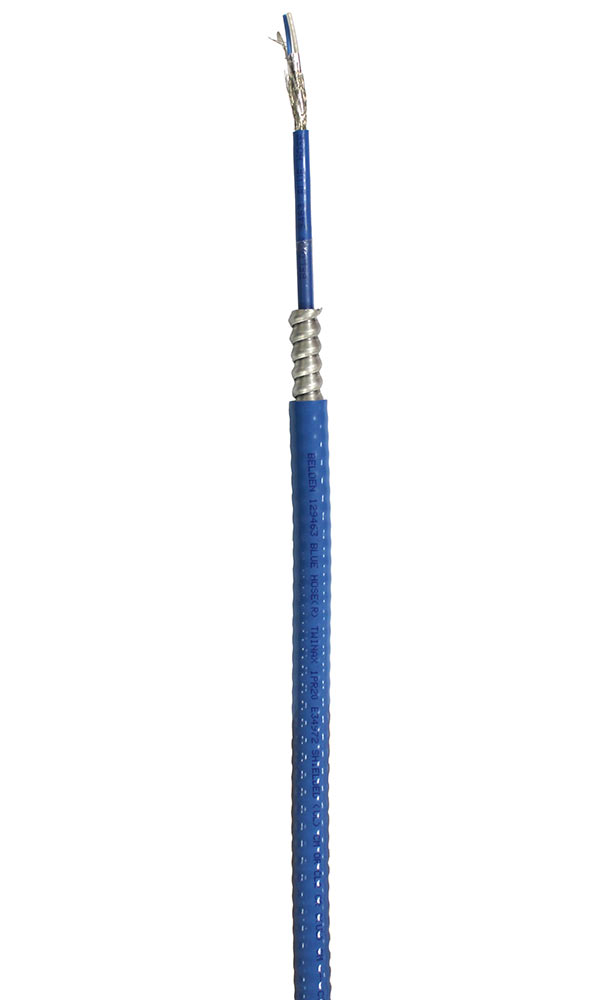

Belden Profibus DP Cable

Belden 129463

  • 78 Ohm, 20 AWG stranded (7 x 28) tinned copper
  • Overall Beldfoil + 55% tinned copper braid shield (100% coverage)
  • Aluminium interlocked armour
  • PE Inuslation
  • Blue sunlight resistant PVC outer Jacket
  • Aluminium armoured blue hose 300V 60oC
  • Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) 0.038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km
  • Nominal OD - Core 0.2238 inch / 6.05mm; Armour 0.563" / 14.30 mm
Standard Length (ft) 1000 6000
Standard Length (m) 304.8 1828.8
Standard unit weight (lbs) 122.0 924.0
Standard unit weight (kgs) 55.5 420.0

Belden 89463

  • 78 Ohm, 20 AWG stranded (7 x 28) 0.038" tinned copper
  • Overall Beldfoil + 56% tinned copper braid shield (100% coverage)
  • Plenum
  • FEP insulation
  • Blue FEP jacket
  • High temperature blue hose 300V 200oC
  • Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) 0.038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km
  • Nominal OD - 0.203inch / 5.16mm
Standard Length (ft) 1000 2500
Standard Length (m) 304.8 762.0
Standard unit weight (lbs) 36.0 90.0
Standard unit weight (kgs) 16.4 40.9

Belden 139463

  • 78 Ohm, 20 AWG stranded (7 x 28) tinned copper
  • Overall Beldfoil + 55% tinned copper braid shield (100%) coverage
  • Steel interlocked armour
  • Steel armoured blue hose 300V 60oC
  • PE insulation
  • Blue sunlight resistant PVC outer Jacket
  • Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) 0.038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km
  • Nominal OD - Core 0.238inch / 6.05mm; Armour 0.563" / 14.30mm
Standard Length (ft) 1000 6000
Standard Length (m) 304.8 1828.8
Standard unit weight (lbs) 222.0 100.0
Standard unit weight (kgs) 1488.0 676.4

Belden 189463

  • 78 Ohm, 20 AWG stranded (7 x 28) tinned copper
  • Overall Beldfoil + 55% tinned copper braid shield (100%) coverage
  • Continuously corrugated AL armour
  • PE insulation
  • Blue sunlight resistant PVC outer Jacket
  • Continuously armoured blue hose 300V 60oC
  • Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) 0.038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km
  • Nominal OD - Core 0.238inch / 6.05mm; Armour 0.500" / 12.70mm
Standard Length (ft) 6000
Standard Length (m) 1828.8
Standard unit weight (lbs) 864.0
Standard unit weight (kgs) 392.7

Belden 9272

  • 78 Ohm, 20 AWG stranded (7 x 28) tinned copper
  • 93% tinned copper braid shield
  • Polyethylene insulation
  • Blue PVC Jacket
  • UL AWM Style 2092 (300V 60oC)
  • Conductor (stranding) diameter Nom. DCR - 20 AWG (7 x 28) 0.038", Tinned Copper 9.5 Ω/ M', 31.0 Ω /km
  • Nominal OD - Core 0.244inch / 6.20mm
Standard Length (ft) 100 U-500 500 U-1000 1000
Standard Length (m) 30.5 U-152.4 152.4 U-304.8 304.8
Standard unit weight (lbs) 4.9 20.0 20.0 39.0 40.0
Standard unit weight (kgs) 2.2 9.1 9.1 17.7 18.2
